Tools & Accessories
1. Torque screwdriver
2. Flat head (-) screwdriver
3. New bulb if necessary (H7)
Introduction

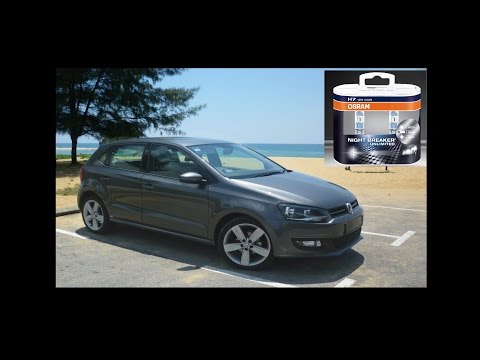

I recently purchase a new set of headlight for my VW Polo. Below are the procedure taken to replace my headlight bulb.
1. Remove 2 locking screw on top.
2. From inside, knock headlight assembly slightly outward towards front.
3. Pull out gently to front and side, the headlight cable have some extra length.
4. Remove rubber cover.
5. Rotate the bulb holder 45 degree counter clockwise.
6. Remove the holder from headlight assembly.
7. Pull out the bulb.
8. Insert new bulb into the holder.
9. Insert holder into headlight assembly.
10. Rotate the holder 45 degree clockwise.
11. Test the new bulb light up.
12. Put back rubber cover.
13. Insert back headlight assembly.
14. Insert locking screw into top bracket and tighten.
I'm planning to change my 1.6 mpi headlamps to the black version. But I heard that the socket is different. Is there any compatible ones that you know?
ReplyDeleteMPI and TSI using different type of bulb.
